MechaProg A
We introduce interface and application created by Mechasoft, used for advanced diagnostics, repairs and programming of automatic transmisssion with integrated "Mechatronic" control units.
We have developed our „MechaProg A“ tool for bench programming of V.A.G Mechatronics. It is a multiplexer, in connection with regular J2534 is powerfull programming and test station. Is not required to use any third party software.
It can be installed on every modern PC/Tablet/Laptop with Microsoft Windows7, Windows8, Windows10. Works fully offline. Do not need any subscriptions. Works without time limits.
MechaProg can be delivered as READ-WRITE (clone copy - tool) or additionally can be equipped with databases.
My support list
TCU type | Last Name | Family | Flash | Eeprom | Clone / other functions |
|---|---|---|---|---|---|
01J/0AN |
01J927156JF,01J927156HH, 01J927156HT, 01J927156JN, 01J927156JG and similar | VL30/VL300 | R/W/Chk | - | OBD Flash SGO |
0AW |
0AW927156E, 0AW927156G, 0AW927156K, 0AW927156H | VL381 | R/W/Chk | R/W/ | R/W/Chk / FRF |
0AM/0CW/0CG |
0AM927769D, 0AM927769E, 0AM927769F, 0AM927769G, 0AM927769H, 0AM927769K, 0AM927769M, 0AM927769N, 0AM927769L | DQ200, DQ200 G2, DQ200 MQB | R/W/Chk | R/W | yes / test / SGO FRF |
02E/0D9 |
02E927770AJ, 02E927770AL, 02E927770AN, 02E927770AM,02E927770AS, 02E927770AT,02E927770AQ and similar | DQ250 Exx/Fxx, DQ250 MQB | R/W/Chk | R/W | yes / test / SGO FRF |
0GC/0DL/0DE/0DW |
0GC927711H, 0GC927711G, 0DE927711C | DQ380 DQ381 DQ 500 | R/W/Chk | R/W | R/W/Chk / FRF |
0DD |
0DD927770A, 0DD927770B, 0DD927770C, 0DD927770D, 0DD927770E, 0DD927770F | DQ400 | R/W/Chk | R/W | yes / test / FRF |
0CK | oCK | DL382 G1 | R/W/Chk | R/W | yes / test / FRF |
0B5 |
0b5 | DL501 G1, DL501 G2 | R/W/Chk | R/W | yes / test / FRF |
VGS-FDCT, VGS2-FDCT |
A005 446 33 10, A005 446 36 10, A005 446 37 10 | 724.0 | R/W/Chk | R/W | yes / test / CFF |
VGS-FCVT | A 169 545 10 32 | 722.8 | programming database | partially | - / test / CFF |
VGS2-FCVT | A 003 446 24 10 | 722.8 | R/W/Chk/Database | R/W | yes / test / coding / CFF |
VGS1 NAG2 | A 033 545 67 32, A 033 545 66 32, | 722.9 | programming database | partially | - / test / coding / calibration / CFF |
VGS2 NAG2 | A 033 545 73 32 | 722.9 | programming database | partially | - / test / coding / calibration / CFF |
VGS3 NAG2 | A 003 446 03 10, A 003 446 06 10 A 003 446 07 10, A 000 901 94 00, A 000 901 80 08 | 722.9 | programming database | partially | - / test / coding / calibration / CFF |
VGSNAG3 | A0009014800, A0009014900, A0009015000, A0009015100 | 725.0 | R/W/Chk | R/W | yes / test / CFF |

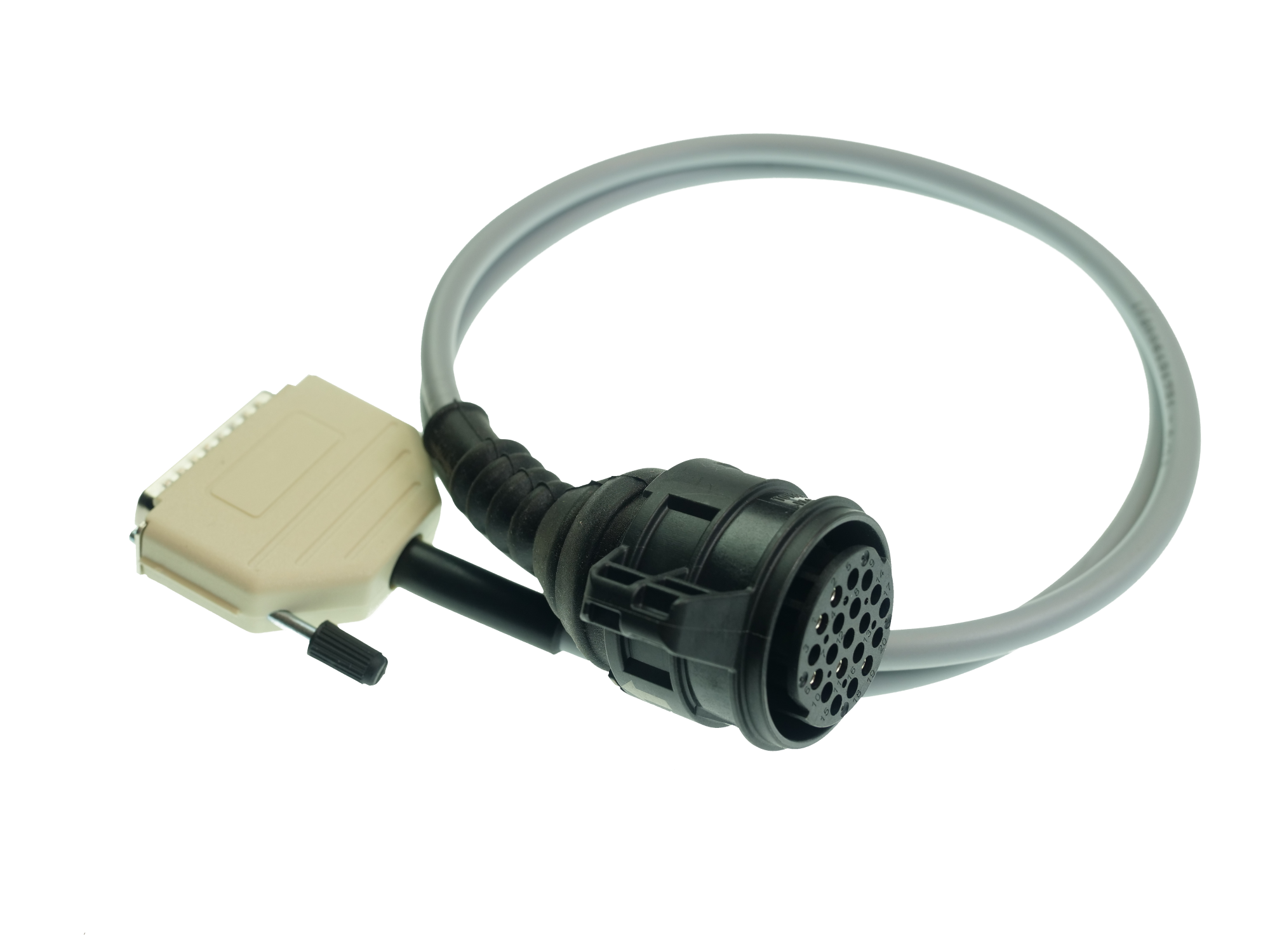

MPS6/W6DGA | GETRAG POWERSHIFT | R/W/Chk | R/W | yes / - |
My functions
My Full Set

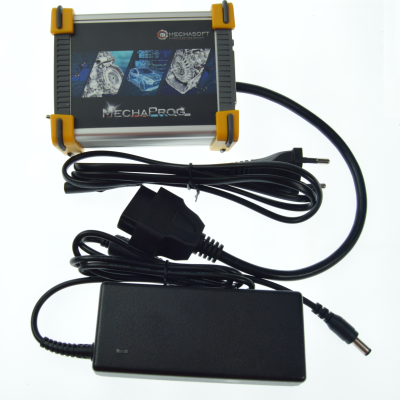

MechaProgA main Device,
USB Cable,
Power adapter
J2534 Device

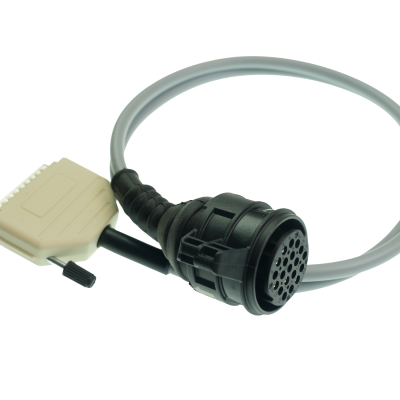

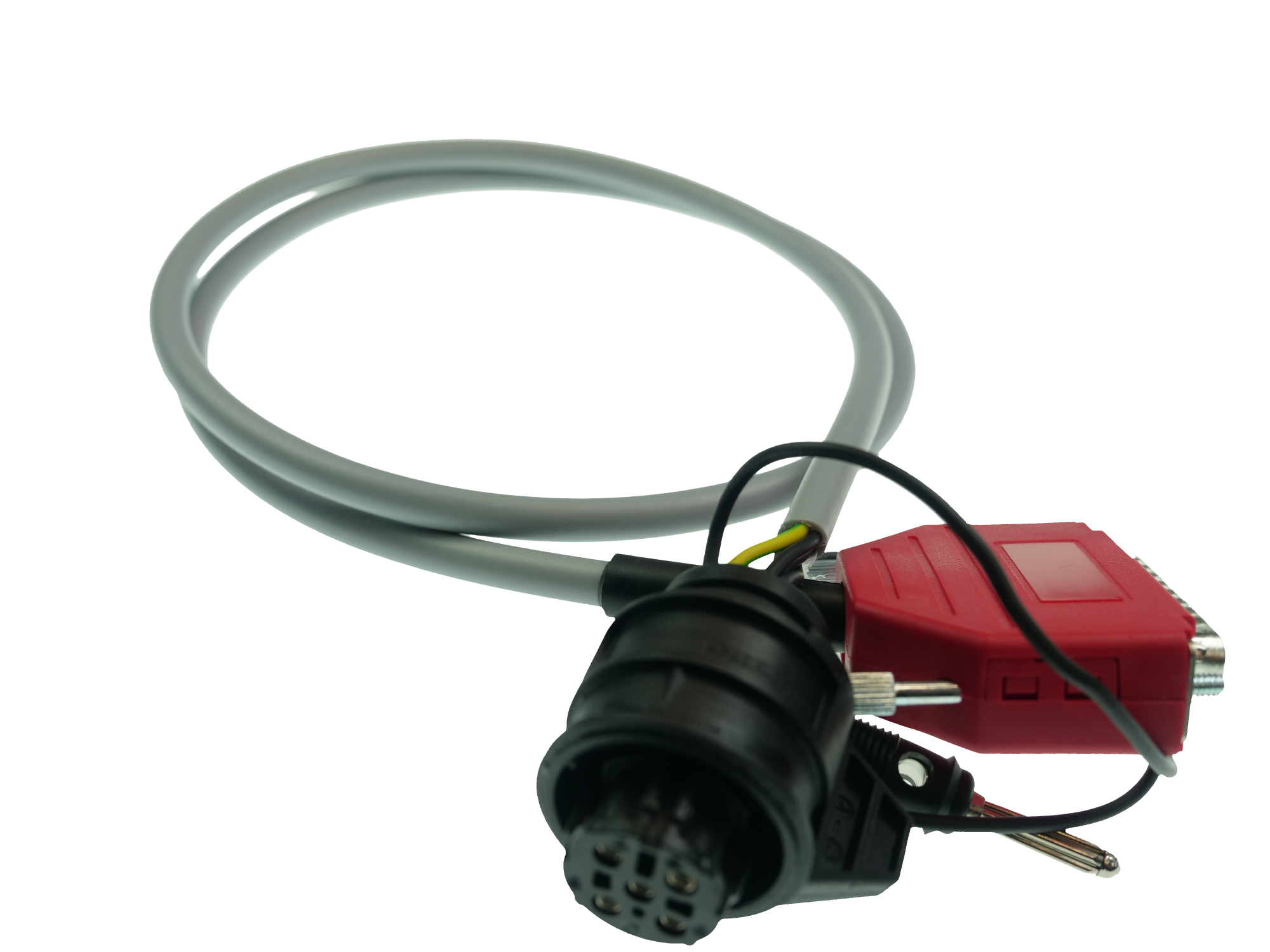

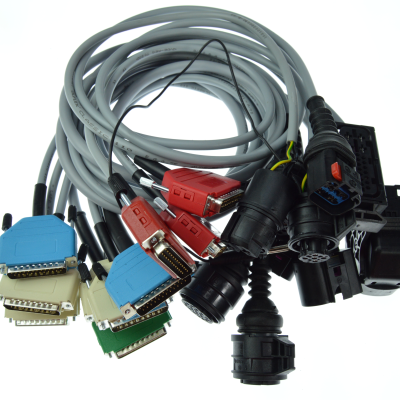

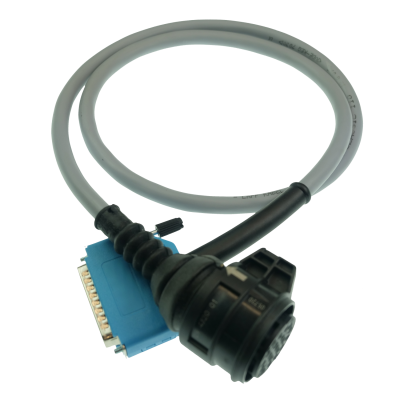

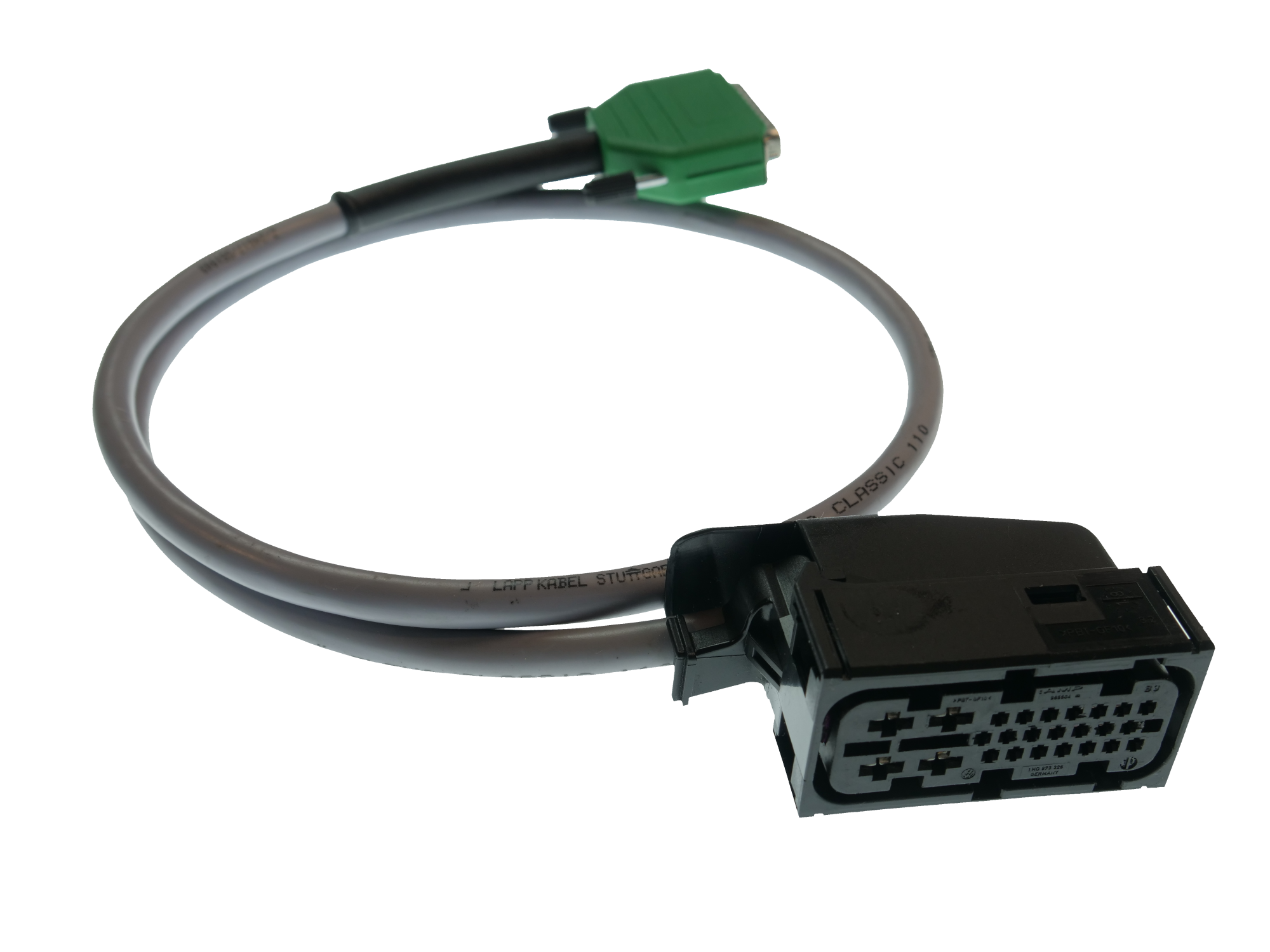

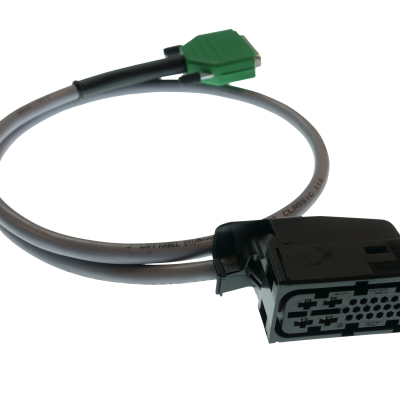

Cables set:

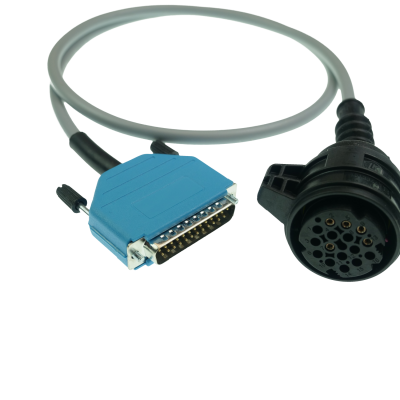

MECH-VL381
MECH-VL30002E
MECH-VL300AM

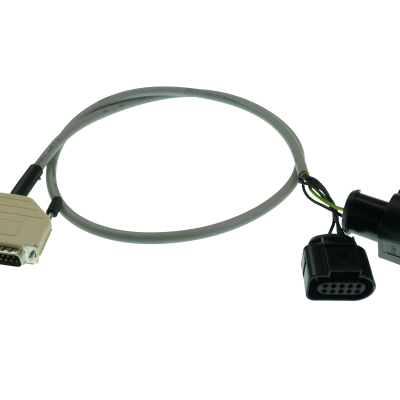

MECH-DQ400

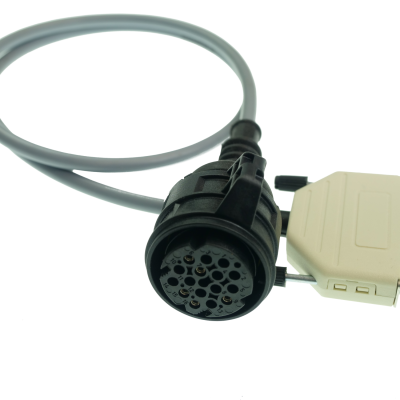

MECH-DQ500

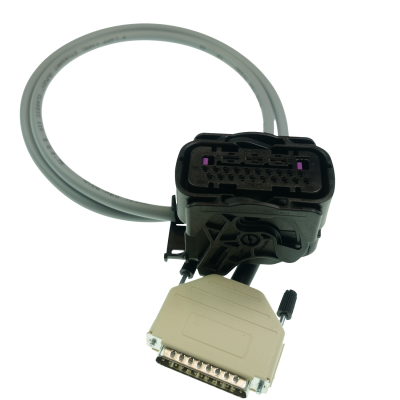

MECH-DL382

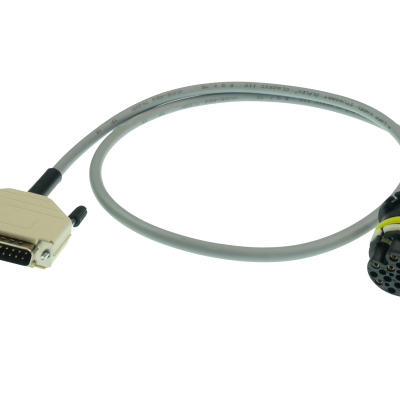

MECH-DL501

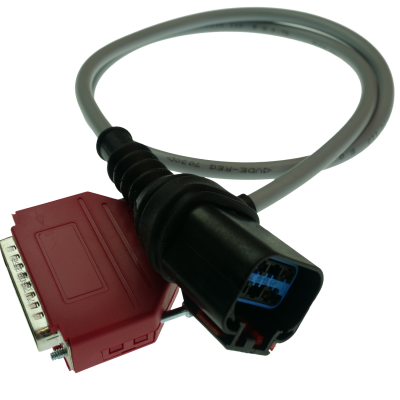

MECH-MBCVT7228

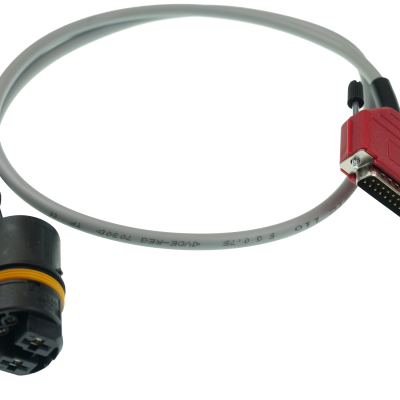

MECH-MB9G

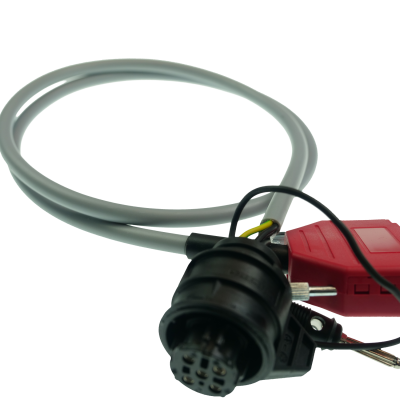

MECH-MB7GDCT
MECH-MB7G
MECH-DCT45x
Activated modules for read/write/clone units:
DQ200, DQ250, DQ380, DQ381, DQ400, DQ500 (BOSCH), DL382, DL501, VL381
VGS-FDCT(724.0), VGS2-FDCT(724.0), VGS2-FCVT(722.8), VGSNAG3(725.0)
MPS6/W6DGA
BMW GS7Dxx
All 01J with KWP2000 and newer, ALL DQ200, ALL DQ250, VL381, DQ381, DL501, DL382, VGS-FDCT(724.0), VGS2-FDCT(724.0), VGS2-FCVT(722.8), VGSNAG3(725.0), VGSNAG2(722.9) [VGS1, VGS2, VGS3]
Activated MISC:
Coding VAG, Manual solenoid calibration for 722.8/722.9, Manual adaptation for 722.9, Manual advanced coding for 722.9, Simply coding for 722.8, Virgin for 722.9 VGS2NAG2 only
