About DQ200

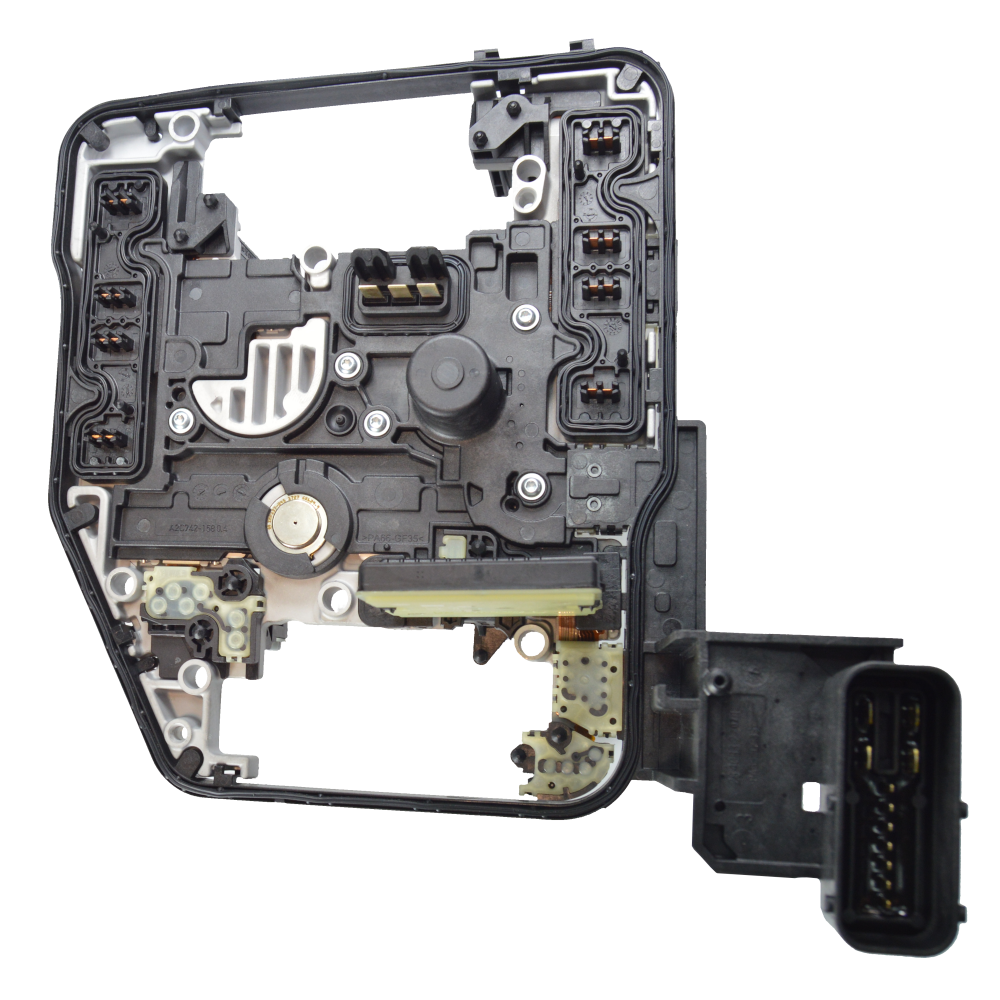

DQ200 TCU
DQ200 TCU exists in few options
Generations: 2
first gen: HW: 0AM927769D 0AM927769K 0AM927769G with input speed on cable sensor
second gen: 0AM927769E, 0AM927769N without input speed sensor on cable
second gen: 0AM927769F with input speed sensor on cable
DQ200 PCB pinout

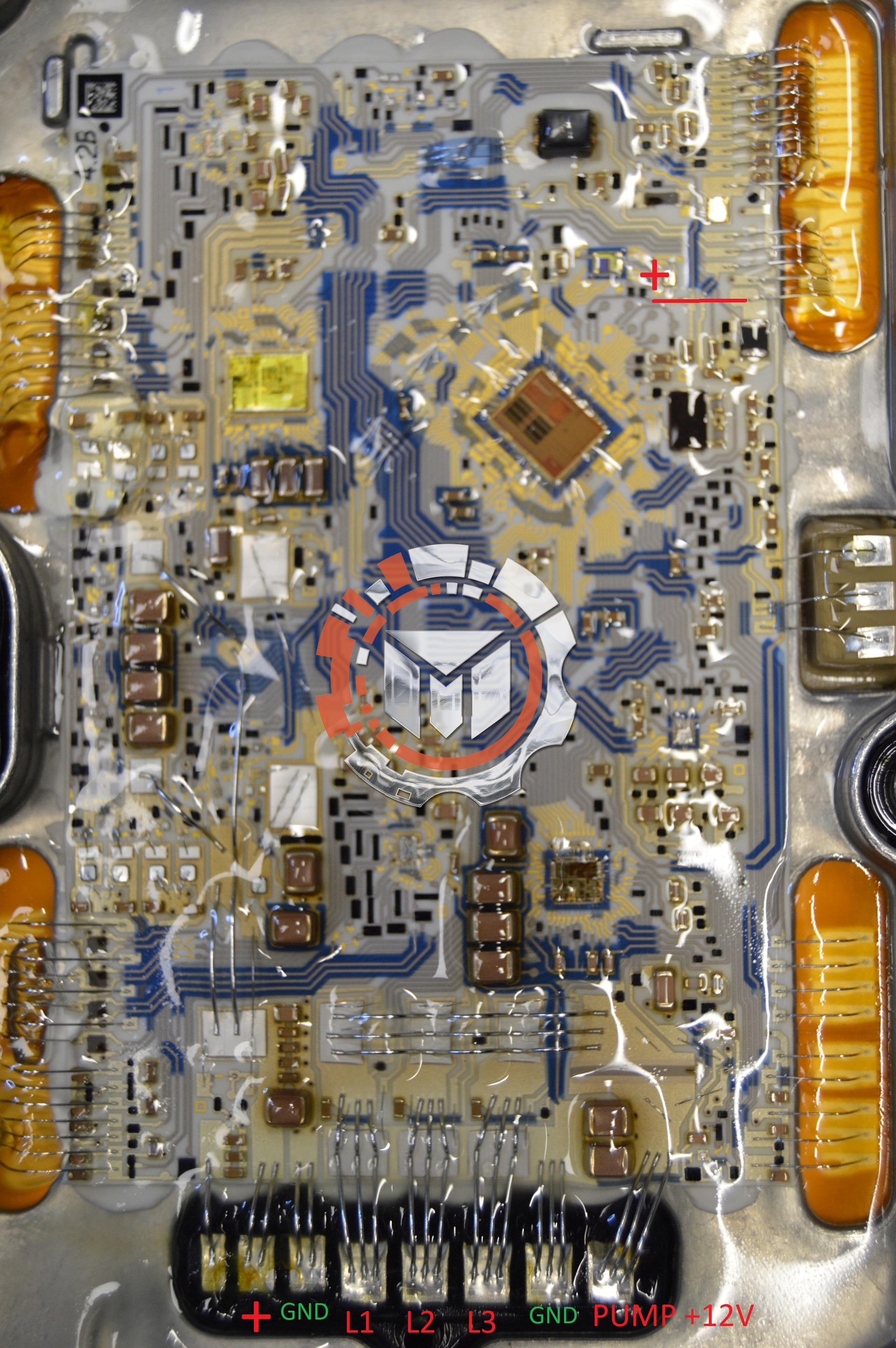

Generation 1

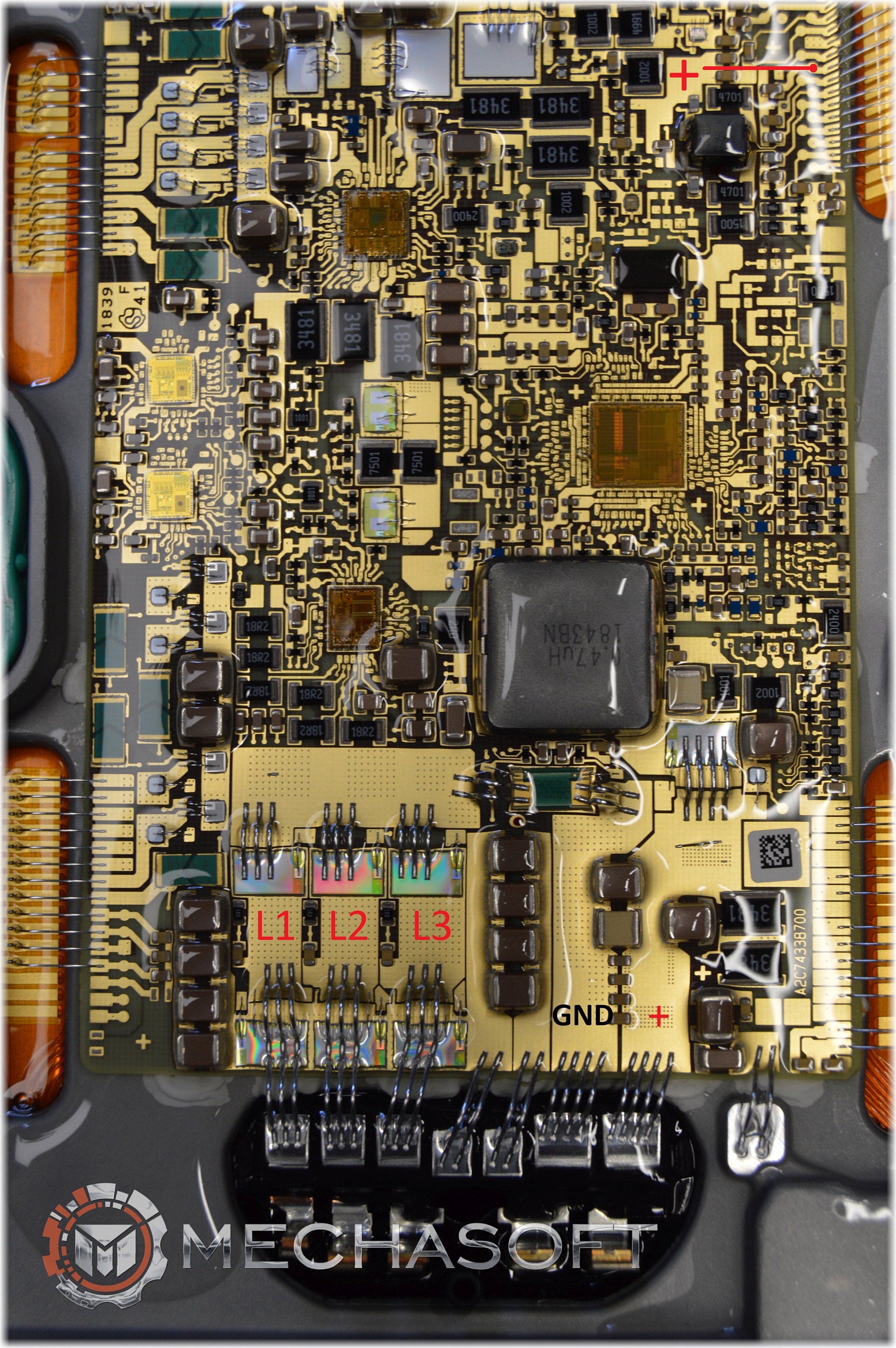

Generation 2
DQ200 Connector pinout

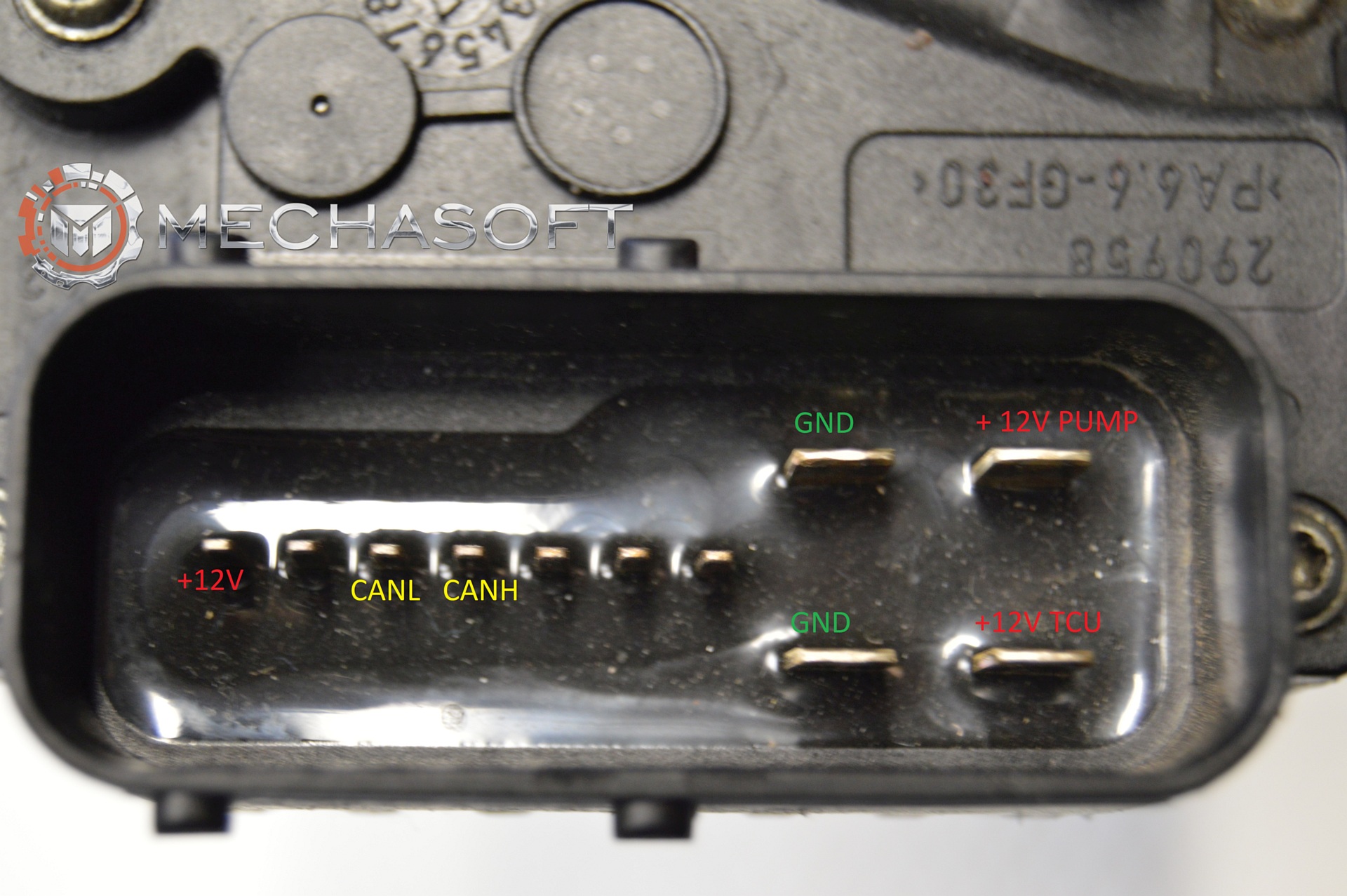

Generation 1

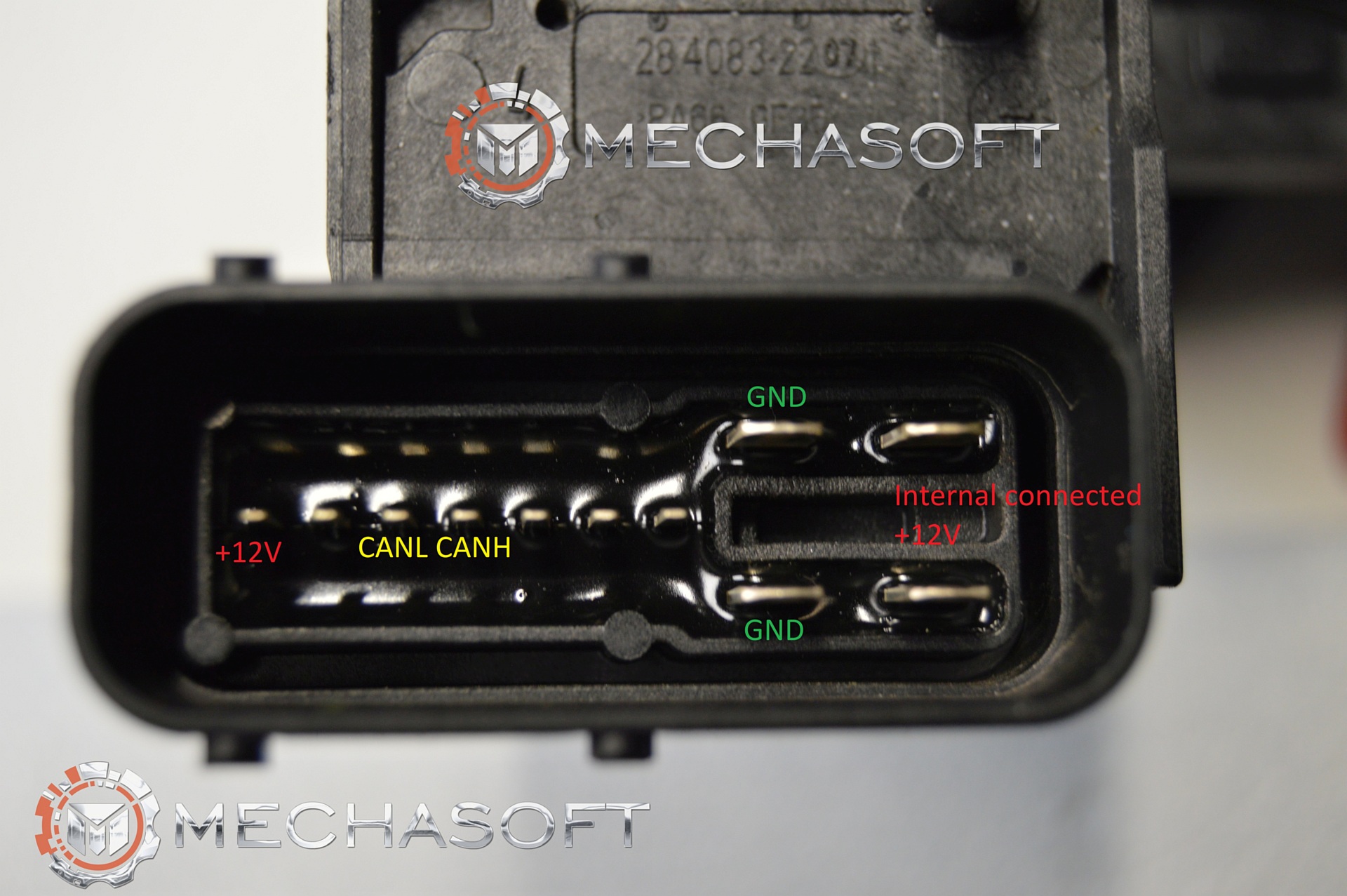

Generation 2
